VERY HEAVY GAUGE
VERY HEAVY GAUGE

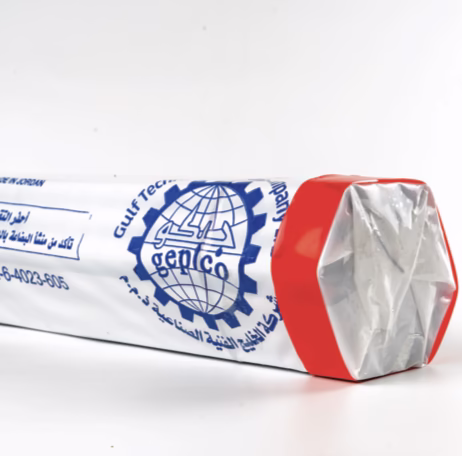

GCV VERY HEAVY PVC RIGID CONDUITS
Laser engraved with detailed production and product information for traceability and quality control and with special GEPICO graphics to fight counterfeit products.
Very Heavy Guage conduits are ideal for cases when incasing under heavy concrete loads or where high stress and impact pressures are expected.
GEPICO Conduits are specially designed and formulated for a long service life and to give excellent protection
PROPERTIES
| Properties | Description | Class |
| Resistance to compression | 4000Nt/5cm | 5 |
| Resistance to impact | 6J (at -25oC) | 4 |
| Lower temperature range | -25oC | 4 |
| Upper Temperature Range | +60oC | 1 |
| Resistance to bending | Rigid | 1 |
| Electrical characteristics | Electricaly Insulating | 2 |
| IP ingress protection | min IP65 | 65 |
| Resistance against corrosion | not Applicable | 0 |
| Tensile strength | None Declared | 0 |
| Resistance to flame propogating | Non flame Propogating | 1 |
| Suspended load capacity | None Declared | 0 |
Applicable Standards
- BS EN 61386
- JS 287
- GSO 32
- SASO 61386
- BS 6099
- BS 51386
